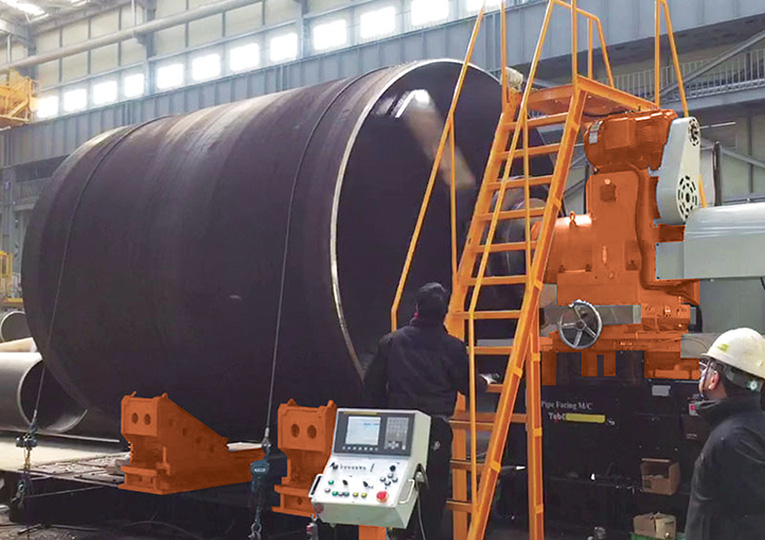

Tube 3000K(F)
Automatic Pipe Beveling Machine / KD or Fanuc Program
| Category | Specification | |
|---|---|---|
| Diameter | 32˝ ~ 120˝ | |
| Thickness | Max. 120㎜ | |
| Spindle RPM | 50 | |
| Spindle Motor | 22~55㎾ | |
| Z-axis Motor | 5.5㎾ | |
| X-axis Motor | 3.5㎾ | |
| Vise Motor | N/A | |
| Control | 3000K | KD NC Program |
| 3000F | Fanuc CNC Program | |
| Dimension | L × W × H | 8,300 × 2,700 × 3,300㎜ |
| Weight | 28,000 | |
