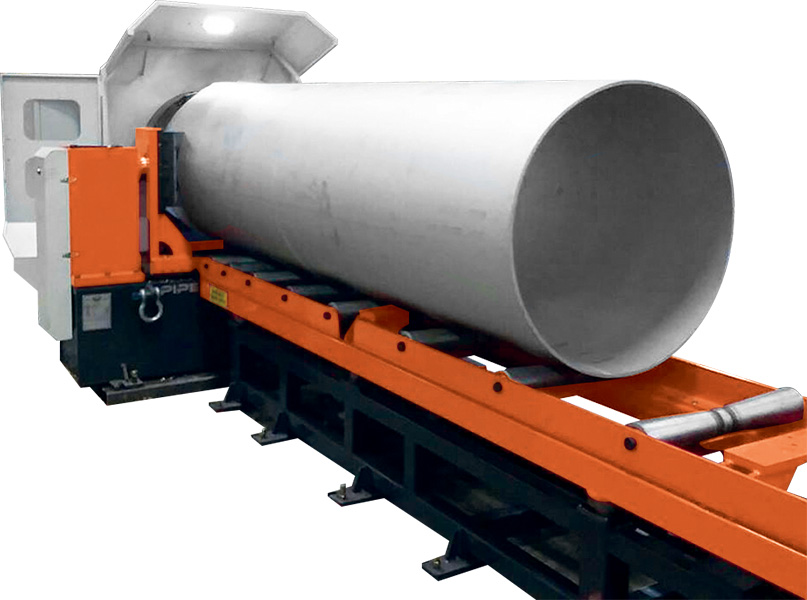

Tube 1200K(F)
Automatic Pipe Beveling Machine / KD or Fanuc Program
| Category | Specification | |
|---|---|---|
| Diameter | 10˝ ~ 48˝ | |
| Thickness | Max. 100㎜ | |
| Spindle RPM | 120 | |
| Spindle Motor | 11㎾ | |
| Z-axis Motor | 3.5㎾ | |
| X-axis Motor | 1.5㎾ | |
| Vise Motor | 2.2㎾ | |
| Control | 1200K | KD NC Program |
| 1200F | Fanuc CNC Program | |
| Dimension | L × W × H | 2,500 × 2,900 × 2,400㎜ |
| Weight | 8,500 | |
