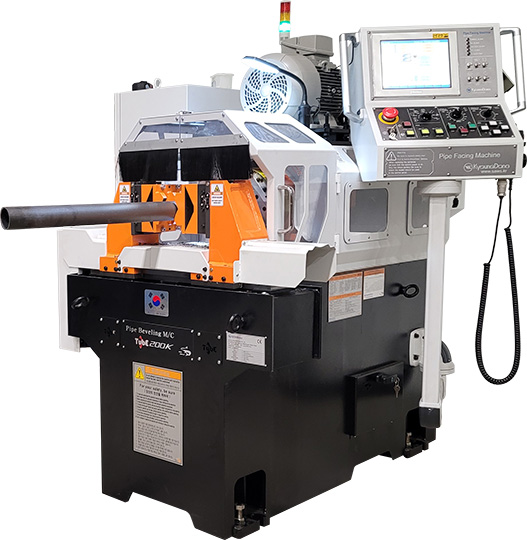

Tube 200K(F)
Automatic Pipe Beveling Machine / KD or Fanuc Program
| Category | Unit | Specification | |
|---|---|---|---|
| Diameter | 1˝ ~ 8˝ | ||
| Thickness | ㎜ | Max. 13 | |
| Spindle RPM | 300 | ||
| Spindle Motor | ㎾ | 3.75 | |
| Z-axis Motor | ㎾ | 3.75 | |
| X-axis Motor | ㎾ | 3.75 | |
| Vise Motor | ㎾ | 3.75 | |
| Control | 200K | KD NC Program | |
| 200F | Fanuc CNC Program | ||
| Dimension | L × W × H | ㎜ | 850 × 950 × 1,650 |
| Weight | 2,000 | ||
